Healthcare data is now the focal point of every decision you make. You can tell this from the clinicians complaining about having to enter data again, the patients providing the same information, and even your analytics team struggling to have confidence in the reports. At the heart of these issues lies one problem: how systems communicate with each other.
The debate on HL7 vs FHIR is basically about healthcare interoperability. These two healthcare interoperability standards are the main EHR interoperability drivers. They are also the factors that determine how quickly you can switch to value-based care, virtual care, and data-driven operations.
The real challenge for you is not to decide which one is better. Instead, your challenge is to think about the areas where HL7 interoperability is still suitable for your environment, where FHIR interoperability can give you a competitive edge, and how to link both without compromising care.
What Is Healthcare Interoperability?
Healthcare interoperability is the extent to which different health IT systems can share, understand, and use data through a consistent approach. It is more than just the act of message sending. It means ensuring the work process that gets the data can properly understand the data.
With interoperability, you will have to deal with three different concrete levels:
- Foundational: One system sending an HL7 message and the other system receiving it, was an example of how systems can exchange data.
- Structural: the format of the data is consistent; for example, a lab result follows a standard structure.
- Semantic: the meaning of the data is preserved, for example, problems use SNOMED CT, and medications use RxNorm.
When you think about HL7 vs FHIR</strong], you are deciding how you drive structural and semantic interoperability across EHRs, labs, HIEs, payer systems, and digital health tools.
The stakes are high. A study in the U.S. estimated that interoperability issues drive as much as 24 billion dollars in excess administrative costs every year through manual work, rework, and delays. At the same time, nearly 70 percent of U.S. hospitals share information with external providers, which means every gap in standards shows up in front-line workflows.
Overview of HL7
HL7, formally known as Health Level Seven, is a set of standards designed to support the sharing of clinical and administrative data. The term “HL7 interoperability” mostly refers to HL7 v2 and, in some situations, also to HL7 v3 or CDA.
HL7 v2
For decades, HL7 v2 has been the backbone of hospital integration.
- You will find it in ADT messages from the registration system to the various downstream systems.
- Orders are being transmitted from EHRs to lab, radiology, and pharmacy.
- Results are being sent back to clinical systems.
- Billing and charge capture messages.
HL7 v2 has a pipe and caret format. Although it is compact and efficient, it is more difficult for beginners to understand. A message consists of segments, fields, and components, and very often, custom Z segments are used. This flexibility was a major reason for the widespread adoption of HL7 v2; however, it also leads to differences not only between vendors but sometimes even at the same site.
HL7 v3 and CDA
HL7 v3 and CDA are aimed at better modeling and documents based on XML. CDA, along with CCD and C, CDA, is frequently used for document exchange, such as care summaries. Adoption is still lagging behind HL7 v2, but CDA is still important for HIEs, referrals, and regulatory programs that require document sharing.
In terms of HL7 interoperability, the majority of your production interfaces operate on v2, while CDA is utilized in the case of exchanging summary documents.
Overview of FHIR
FHIR (Fast Healthcare Interoperability Resources) is the new standard from HL7. It draws ideas from the web: resources, REST APIs, JSON, and XML. It will probably feel more like modern software development.
FHIR Basics
FHIR is based on the principle of resources, which are modular building blocks. Every resource is a real-world entity, such as Patient, Encounter, Observation, or MedicationRequest. You link resources together through references, which allows you to create complete clinical narratives across different systems.
FHIR interoperability commonly relies on RESTful APIs. Your developers get access to endpoints like /Patient or /Observation and manipulate data by performing HTTP methods such as GET, POST, PUT, or DELETE. However, these same resources can be transferred in messages or documents, but APIs are the main focus.
Why FHIR adoption is accelerating?
FHIR has gained a lot of traction because it is a great match for the way digital health products and analytics platforms operate. A survey conducted recently revealed that more than 80 percent of the leading EHR vendors provide support for FHIR APIs as a means of their external connections. Besides this, U.S. regulations are also a push factor in this direction. The ONC interoperability rules mandate that certified EHRs should provide standardized FHIR APIs for patients and third-party apps, which will thus make your integration strategy lean more on FHIR at the edge, even if HL7 v2 is the one running at the core.

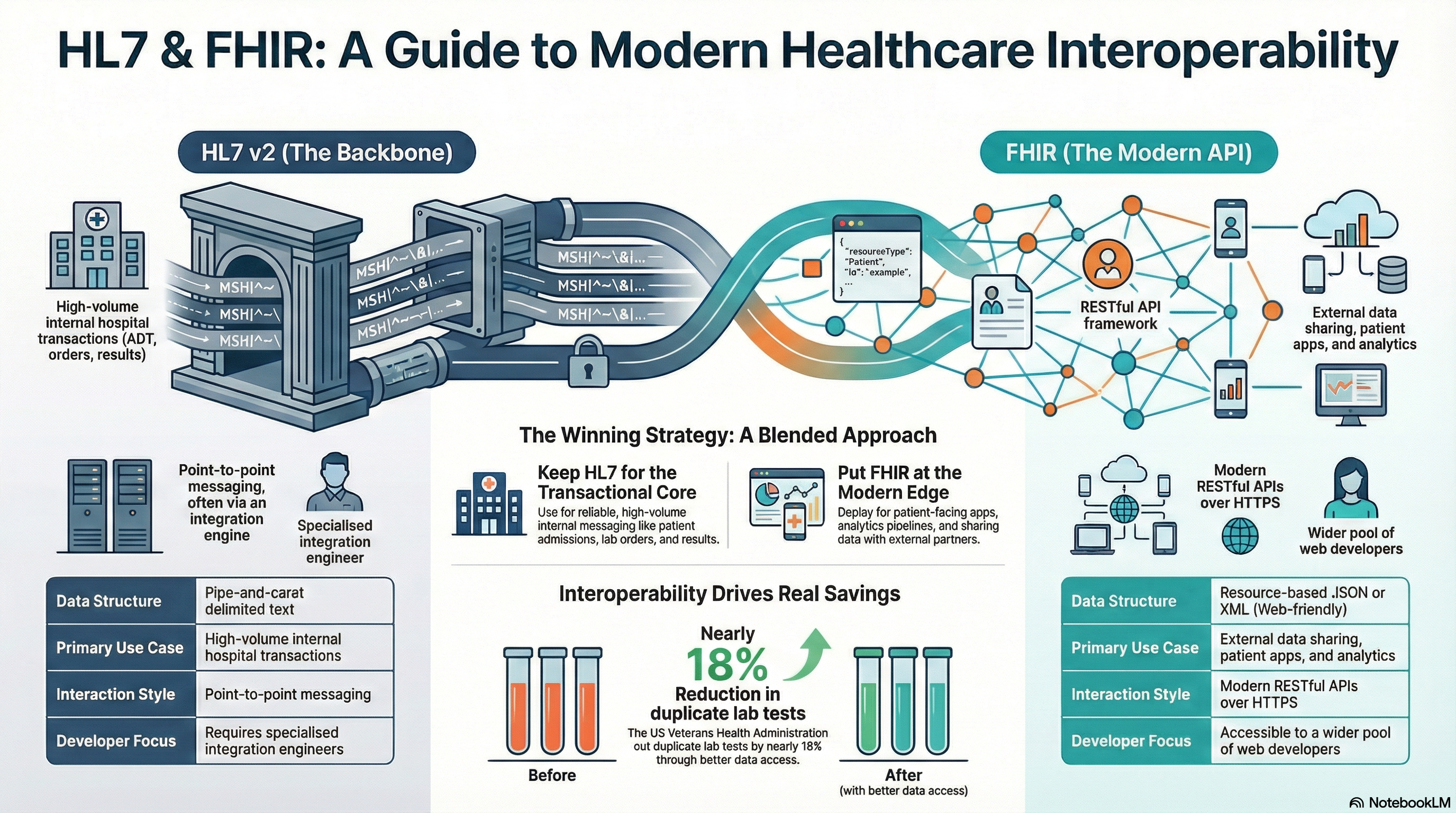

Key Differences Between HL7 and FHIR
When you perform an evaluation of HL7 vs FHIR comparison, I suggest that you first consider the practical differences that would have an impact on your integration roadmap and not merely the technical design.
1. Data model and structure
- HL7 v2 messages are made up of segments and fields, and these messages are delimited text.
- FHIR resources are well-structured and thus can be coded in JSON or XML. HL7 v2 messages may differ between vendors because of custom segments.
FHIR, on the other hand, strives for stronger consistency through standard profiles and implementation guides, e.g., US Core.
2. Transport and interaction style
- HL7 v2 messages typically use MLLP for transport and have point, to, point connections and in other cases are processed through integration engines.
- FHIR, on the other hand, mainly utilizes RESTful APIs over HTTPS; usually, OAuth 2.0 and SMART on FHIR are used for authorization. That changes how your teams will organise their work.
The team working on HL7 interoperability will have to get deeply involved with interface engines, routing, and queuing, whereas the team working on FHIR interoperability will be implementing API gateway patterns, versioning, and leveraging modern DevOps practices.
3. Use cases and maturity
HL7 v2 is mainly used for transactional communications inside hospitals. It is capable of handling high-volume ADT, orders, and results very reliably. FHIR, on the other hand, is more mature in the areas of cross-organization exchange and patient-facing apps, for example, when consolidating data from multiple sources into one view.
This API approach also works well with analytics and population health. As an illustration, a health plan can gather data across different providers through the FHIR, based on bulk data export. ONC’s emphasis on FHIR APIs has resulted in more than 70 percent of office, based physicians sharing clinical summaries electronically, which facilitates the wider use of FHIR as they upgrade the interfaces.
4. Developer experience
HL7 v2 is known for requiring a specialized integration team as well as an interface engine. Skills in parsing, mapping, and message troubleshooting are very specific. FHIR is based on common web technologies, thus your internal developers and external partners will be able to get up to speed faster.
The HL7 vs FHIR comparison here influences how you hire, your vendor strategy, and the pace of your changes. A FHIR, friendly ecosystem typically supports shorter integration cycles, which is a key factor when you are testing new digital front doors or care management solutions.
5. Extensibility and standardization
Both HL7 and FHIR are capable of supporting extensions. HL7 v2 makes use of Z segments. FHIR makes use of extensions and profiles. The main difference is governance. FHIR implementation guides specify the shaping of data in order to be used for specific cases, such as cancer reporting, quality measures, or payer data exchange. That framework facilitates adherence to national and regional programs far more easily than one, off HL7 v2 customizations.
Use Cases: When to Use HL7 vs FHIR
You will not switch from HL7 to FHIR in one day. You create a plan where HL7 interoperability and FHIR interoperability have their distinct roles. Imagine that each stands for a separate domain and operation.
Support HL7 in the transactional core.
HL7 v2 is still the best option where high volume, resilient messaging inside your hospital is required:
- Delivering ADT data to clinical, ancillary, and billing departments and systems.
- Order and result workflows for lab, radiology, and pharmacy.
- Legacy systems in the departments that only support HL7 v2.
- Real-time alerts going to nurse call, transport, and telemetry systems.
Upgrading every HL7 v2 interface to FHIR usually increases risk with little advantage. You thus keep the flows, standardize them where possible, and only use FHIR as a bridge when you need data from outside the core.
Put FHIR at the edge and use it for aggregation.
FHIR is most appropriate when you:
- Open APIs to patient apps, partners, and external developers.
- Combine data from several EHR systems to get a single clinical or population, level picture.
- Facilitate data exchange between payer and provider in both directions.
- Design analytics pipelines that elevate, inspect, or export clinical data on a large scale.
This is the stage where the ONC Information Blocking and API requirements become important. Certified health.
Examples of blended HL7 vs FHIR strategies
Practically, you will probably be exposed to such scenarios:
- Continue using the HL7 v2 ADT feeds for patient identity and visits, also translating only a few fields via FHIR Patient and Encounter resources for external APIs.
- Maintain lab orders and results in HL7 v2, but provide analytics platforms or population health tools with FHIR Observation resources.
- First convert the HL7 v2 messages from various EHRs into normalized FHIR profiles, then employ FHIR as the canonical data layer for enterprise reporting.
These patterns enable you to leverage the advantages of both standards without tearing out stable interfaces.
Challenges in Implementing HL7 and FHIR
After figuring out the role of HL7 vs FHIR, you will be confronted with some practical issues. Most organizations downplay the amount of work relating to ensuring data quality, governance, and change management.
1. Variation across vendors and sites
Even with standards, since each vendor and site tries to stay as close as possible to their interpretation, the problem remains. HL7 v2 interfaces are often a mixture of Z segments, fields that have been repurposed, and local code systems. FHIR implementations are different in the choice of resources, profiles, and search parameters they support.
One hospital exchange study revealed that over half of the data elements in the shared CCD documents had some sort of inconsistency or optionality. You probably notice similar discrepancies in HL7 feeds and FHIR APIs. If there is no interoperability layer that normalizes and controls this variation, you are essentially increasing the complexity of each project.
2. Semantic alignment and terminology
Structural standards alone do not ensure semantic alignment. Achieving true EHR interoperability requires you to:
Standardize code systems like SNOMED CT, LOINC, ICD, 10, and RxNorm.Map local codes to standard vocabularies. Use consistent units and value sets. If you do not do this work, you will have HL7 or FHIR messages that are technically correct but still lead to inaccurate analytics and poor decision support.
3. Legacy systems and technical debt
Departmental systems, for the most part, support only HL7 v2 and have limited vendor support. These are the systems that you need for daily operation, but you also want their data to be part of modern workflows and FHIR, based APIs. It is taking time and budget to replace them.
A phased approach is a good idea. Consider utilizing an interoperability platform to encapsulate your legacy systems. Map HL7 v2 feeds into standardized models. Incrementally shift your use cases to FHIR as you update your applications.
4. Security, consent, and governance
If you extend interoperability via FHIR APIs, you also raise your risk. Therefore, robust authentication, authorization, and consent management are essential. SMART on FHIR, OAuth 2.0, and OpenID Connect are of help, but you still require definite roles, scopes, and approval paths.
Furthermore, you require data governance that applies to both HL7 and FHIR. For instance, when multiple systems provide similar data, who gets to decide which fields take precedence? Who is in charge of mapping logic? How does versioning work when you change data models? Without governance, each time you create a new connection, you are making the same mistakes over and over.
5. Skills and operating model
HL7 versus FHIR is also a talent issue. HL7 interface analysts, integration engineers, and FHIR API developers usually belong to different groups and use different tools and methodologies. You require a unifying strategy and a common platform so that:
- Other teams also reuse mappings and transformation logic.
- Monitoring, alerting, and logging are used end-to-end for HL7 and FHIR flows.
- New projects are added to existing standards instead of being created from scratch.
- Health systems that really do this see great benefits. For example, the case study of the U.S.
The Veterans Health Administration saw, through improved interoperability and access to data, the reduction of duplicate lab testing by nearly 18 percent, which directly impacts the cost and patient experience. Those efficiencies were the result of technical standards plus a more developed operating model.
Conclusion
The HL7 vs FHIR debate should not be about picking one standard only. The essence of healthcare interoperability design is to honor your current HL7 investments while preparing a FHIR-driven future.
HL7 interoperability is what keeps your transactional core stable and running. Besides, it can support ADT, orders, results, and billing at a large scale. Whereas FHIR interoperability is what opens up other possibilities for you. Some examples are APIs, patient access, collaboration with payers, digital health, and state, of, the, art analytics.
You have to combine the two of them based on the output. Efficient workflows for clinicians. Easy access to healthcare services for patients. More data at hand for making decisions. Working on these does require a partner and a platform that is familiar with both sides of the HL7 vs FHIR debate and connecting them seamlessly.
FAQs
- What is the main difference between HL7 and FHIR?
HL7 v2 is a message, based standard that uses delimited text and typically runs on point, to, point interfaces. FHIR is a resource-based standard that uses web-friendly formats like JSON and RESTful APIs. HL7 is mainly used for internal hospital messaging, whereas FHIR is more focused on APIs, app integration, and data sharing across organizations.
- Do you need to replace all HL7 interfaces with FHIR?
HL7 v2 still supports the main transactional workflows like ADT, orders, and results in most settings. You put FHIR over it for external APIs, partner connections, analytics, and patient-facing use cases. Eventually, some of the HL7 interfaces may be converted to FHIR, but the change should be driven by clear value rather than ideology.
- How does FHIR improve EHR interoperability?
FHIR advances EHR interoperability by providing standardized resource definitions, commonly agreed implementation guides, and upgraded API patterns. Thanks to this, different EHRs and digital tools can more easily exchange structured data, refer to a shared vocabulary, and support apps that can operate on multiple vendors without needing custom integration each time.
- Where does HL7 still make the most sense?
HL7 v2 is probably the best fit when it comes to high volume, fast-paced messaging getting done within hospitals and health systems. Common scenarios involve ADT feeds, orders, and results, and integration with legacy departmental systems. These interfaces are stable, tried and tested, and are often so tightly integrated that they have become the operational workflows.
- How can you manage both HL7 and FHIR without extra complexity?
You can simplify things by having one interoperability platform that can deal with HL7 v2, CDA, and FHIR all in one place. The platform should be able to normalize the data, do mappings, handle routing, and expose standardized APIs. This way, you can keep the complexity away from individual systems and, at the same time, have consistent governance and monitoring over all interfaces.
How Vorro Helps You Transition From HL7 vs FHIR To HL7 and FHIR
Vorro is committed to making healthcare interoperability really work. Their integration platform allows a single environment supporting HL7 v2, CDA, and FHIR so that your teams will be able to handle one interoperability layer instead of dealing with a patchwork of interfaces and scripts.
Some of the things you can do with Vorro include:
- Deliver standardized HL7 interoperability across vendors and facilities.
- Publish clean FHIR APIs for EHR interoperability, analytics, and digital health partners.
- Convert between HL7 and FHIR without disrupting existing workflows.
- Use a unified approach to security, monitoring, and governance for all integrations.
If you are done with the philosophical debate of HL7 vs FHIR and are ready for the world interoperability effects, you can get in touch with Vorro and bring together your interfaces, data, and teams under one integration strategy.
